Blue Sea Systems 500A ML-ACR 12V Automatic Charging Relay
Original price was: $326.00.$97.99Current price is: $97.99.
- Best price, safe shopping guarantee
- Excellent customer service online in a timely manner
- Quality that lasts, prices that don't.
- Multiple payment methods, safe and reliable
Product Info

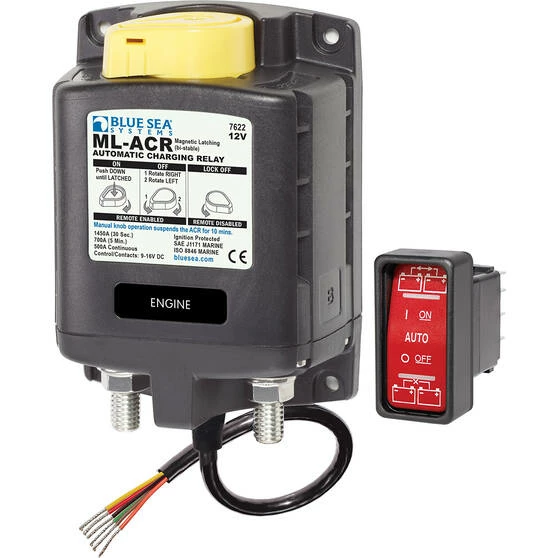

The ML-ACR 12V Automatic Charging Relay with Manual Control is a 500 Amp magnetic latching (bi-stable) relay which automatically combines batteries during charging and isolates batteries when discharging and when starting the engine. The manual control switch provides an added level of safety allowing control with or without power, and offering LOCK OFF capability for servicing. The relay allows paralleling of battery banks for emergency starting. It has a LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, or in Start or Engine isolation (requires optional LED). Includes ML-Series Remote Control Contura Switch.
Features
- Height: 139mm
- Width: 95.3mm
- Depth: 51.6mm
- Continuous rating: 500A
- Intermittent rating: 700A (5 mins)
- Cranking rating: 1450A (30 Seconds)
- Live current switching: 300A @ 12V DC
- Nominal voltage: 12V DC
- M10 Terminal studs
- IP67 rated
