Product Info

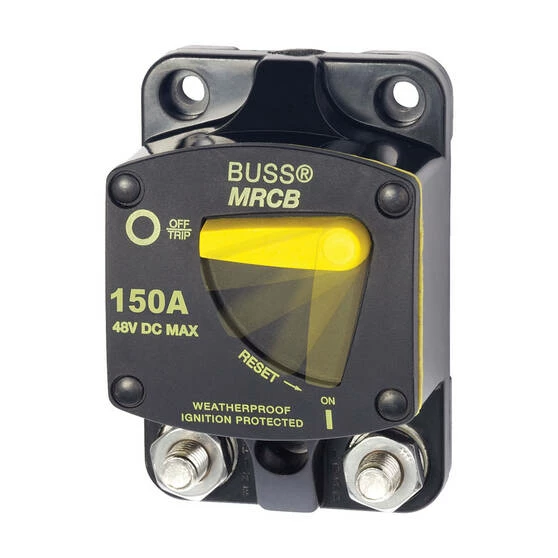

The 187 Series Surface mount Circuit Breaker combines switching and circuit protection into a single device. Its trip free design cannot be held on during a fault current condition. The circuit breaker is ignition protected which means it is safe to install in boats with a petrol engine.
Features
- Available in 100A – 200A
- Height: 87.4mm
- Width: 59mm
- Depth: 45.7mm
- Maximum voltage: 48V DC
- Interrupt capacity: 5000A @ 14V DC, 3000A @ 28V DC, 1500A @ 48V DC
- Surface mounted
- M8 terminal studs
- IP66 Rated
